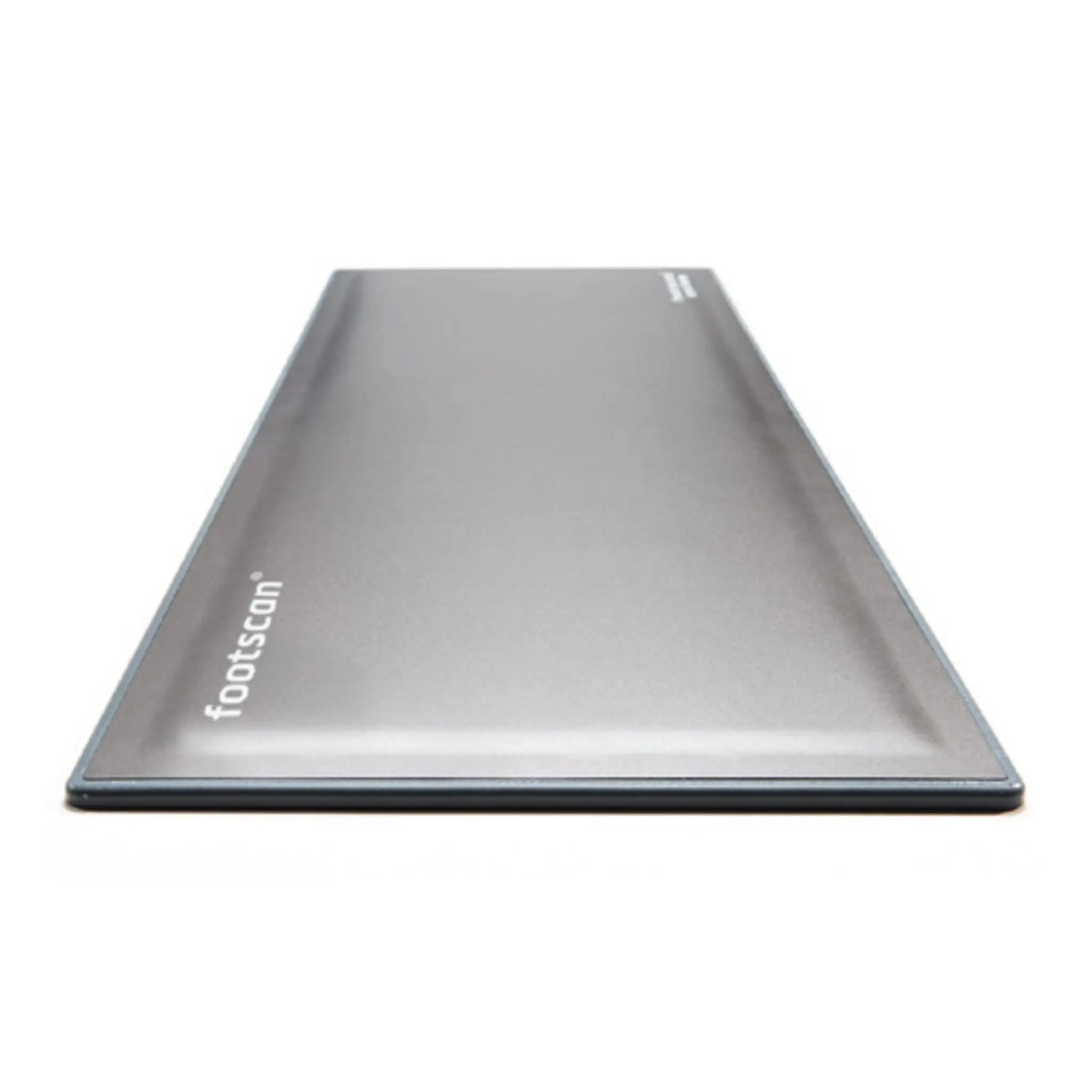

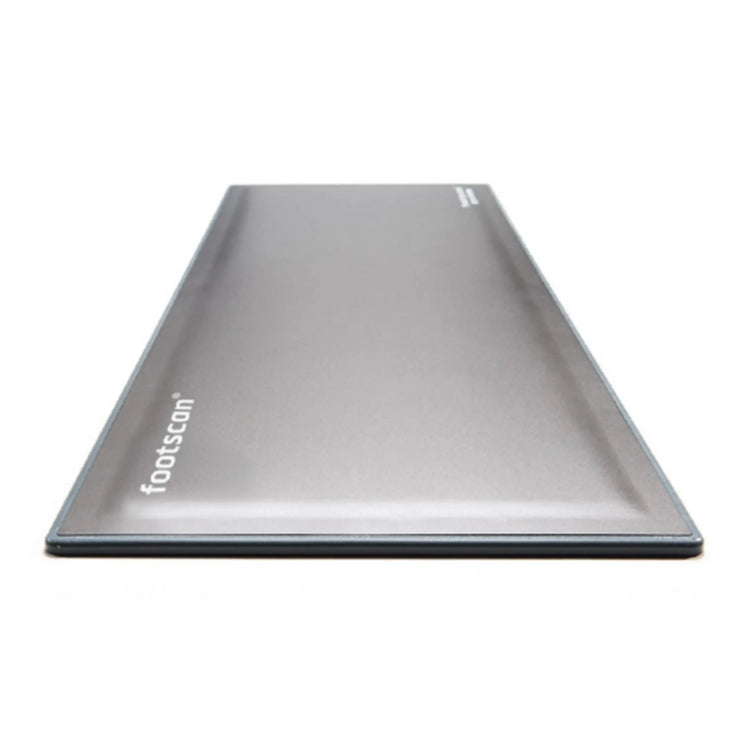

The footscan pressure measuring system is a state-of-the-art device designed for gait recording and analysis. Software (sold separately) accurately records pressure data
plantar, static and dynamic, on subjects barefoot or in shoes.
3D scanners can be used to create a three-dimensional representation of the foot. Please refer to the manual included with your 3D scanner for more information.
Dimensions: 1068 x 418 x 12 mm
Weight 8.3 KG
Number of sensors: 8192 (128 x 64 matrix)
Sensor dimensions: 7.62 x 5.08 mm
Active detection area: 975 x 325 mm
Sensors (technology): resistive
Pressure range: 1 – 127 N/cm2
Acquisition frequency 200 Hz
10-bit resolution
Operating temperature: +15°C to +30°C
Storage temperature: +0°C to +40°C
Operating conditions (humidity): 20% to 80% non-condensing
PC connection: USB 2.0
Cable (length): 4300mm +/- 50mm
The footscan pressure measuring system is a state-of-the-art device designed for gait recording and analysis. Software (sold separately) accurately records pressure data
plantar, static and dynamic, on subjects barefoot or in shoes.
3D scanners can be used to create a three-dimensional representation of the foot. Please refer to the manual included with your 3D scanner for more information.
Dimensions: 1068 x 418 x 12 mm
Weight 8.3 KG
Number of sensors: 8192 (128 x 64 matrix)
Sensor dimensions: 7.62 x 5.08 mm
Active detection area: 975 x 325 mm
Sensors (technology): resistive
Pressure range: 1 – 127 N/cm2
Acquisition frequency 200 Hz
10-bit resolution
Operating temperature: +15°C to +30°C
Storage temperature: +0°C to +40°C
Operating conditions (humidity): 20% to 80% non-condensing
PC connection: USB 2.0
Cable (length): 4300mm +/- 50mm
Ease of use.
Large platform to capture a complete gait cycle.
